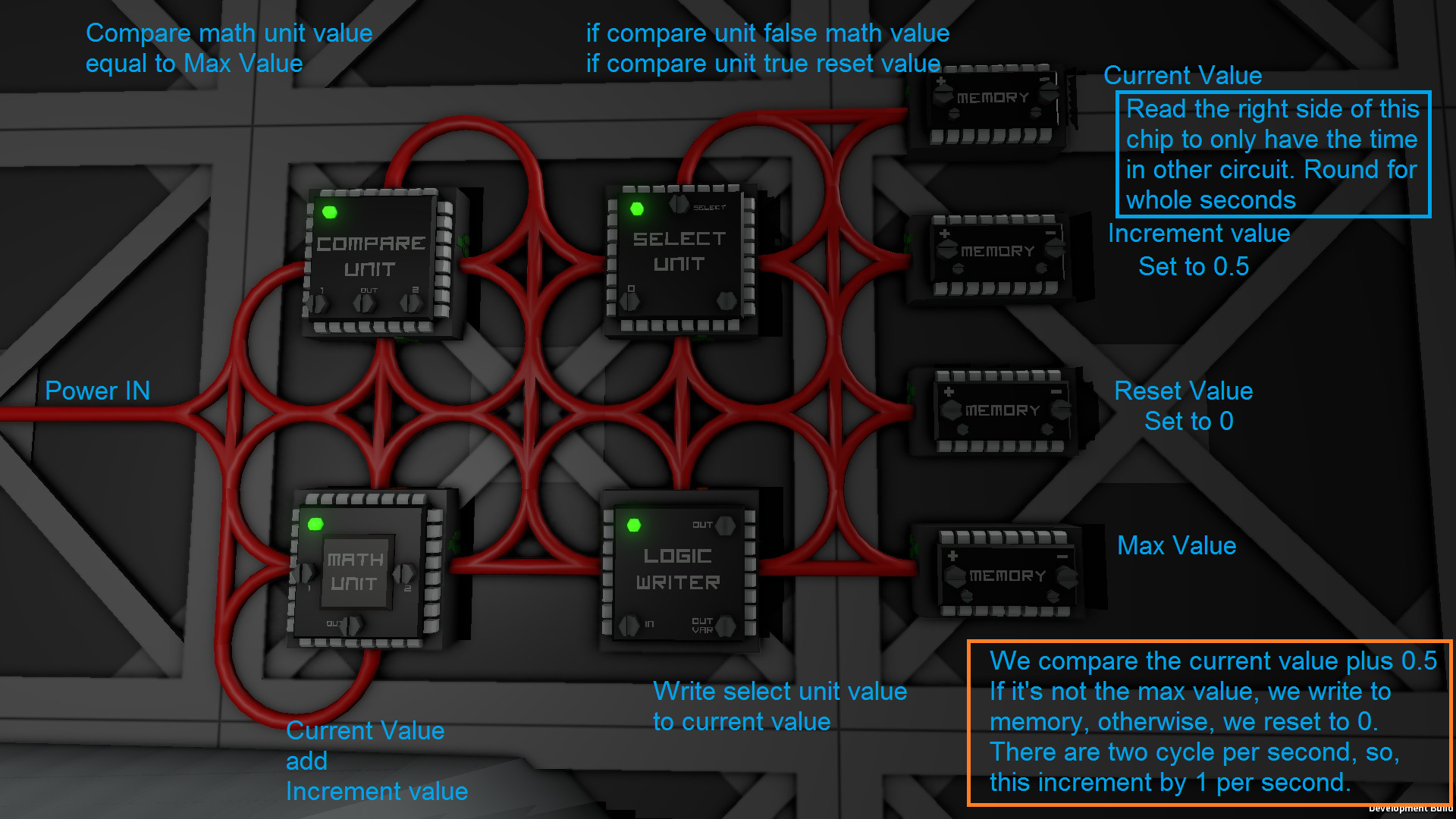

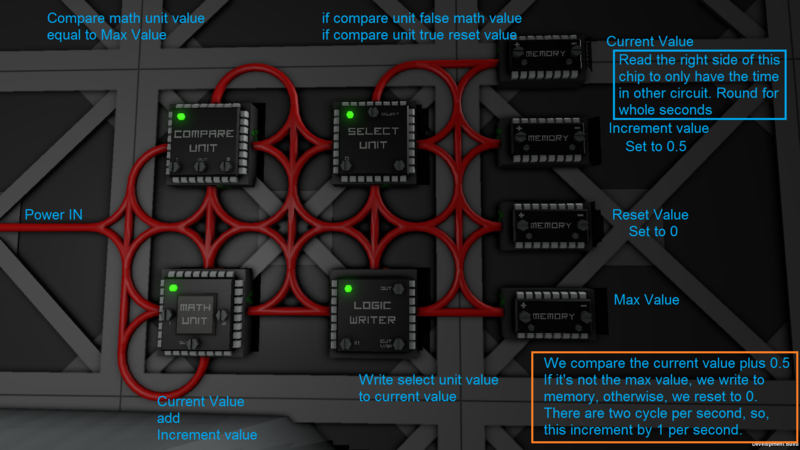

This circuit is a timer that runs from 0 to Max Value

To use this circuit to turn a beacon on/off, you just add 3 additional logic chips. 1 memory (Duration Time), 1 compare (set to "Current lessthan Duration), and 1 writer (set to turn beacon on/off). Also change the "max" memory be max+duration instead of max alone. So you want it to turn the beacon on for 3 sec every 30 sec, max should be 33 and duration should be 3.
